Premium Class Hydraulic Hammers

Precision Performance

All PREMIUM SERIES HYDRAULIC HAMMERS are rated for Severe-Duty.

  • Anti-Blank Fire (ABF)
  • Blow (Striking) Frequency & Power Control
  • Dust Intake Prevention Function
  • Oil Flow Rate Control Function
  • Speed Control Function
  • Auto-Greasing Enabling Function
  • Underwater Enabling Function

Operator-Friendly

  1. Underwater port for optional underwater operation.

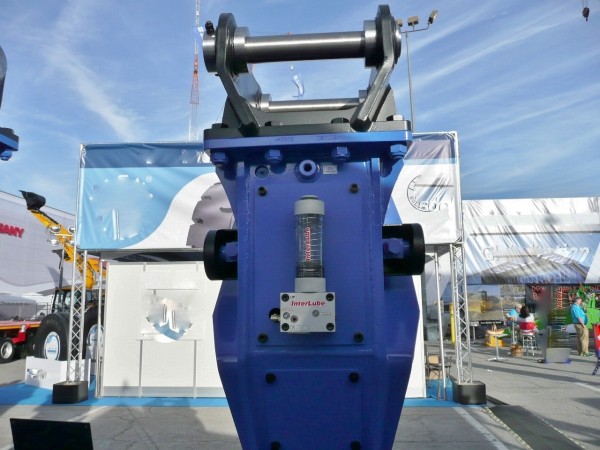

  2. Auto-Lube and grease channel provide grease to bushings automatically to ensure proper lubrication, giving longer service life to bushings and tools.
  3. A cylinder adjuster allows the stroke and blow speed to be controlled by the operator as required for the application.
  4. Premium Series Hydraulic Hammers include, as standard, an anti blank firing system that eliminates damaging blank or dry-firing.
  5. Pads and side dampers fully enclosed in the box housing protect the power cell.
  6. Premium Series Hydraulic Hammers/Hydraulic Breakers utilize highly wear-resistant materials to increase the hammer's durability, decrease the noise, and reduce the strain on the operator and machine. Comfort and work efficiency is improved for the operator.

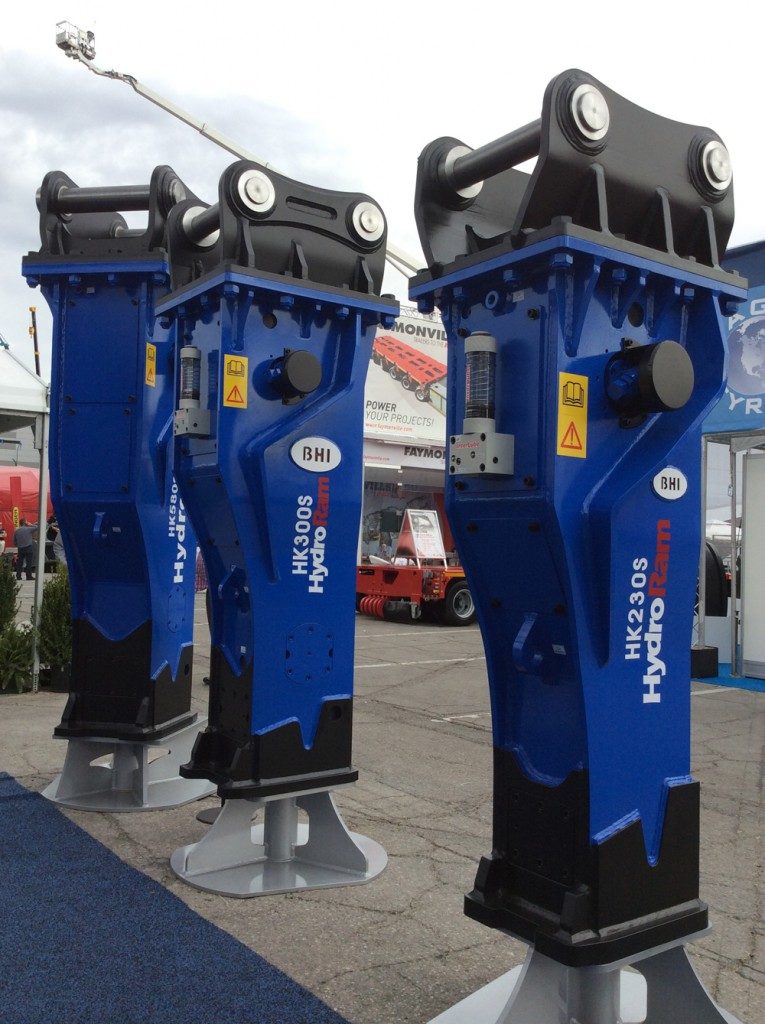

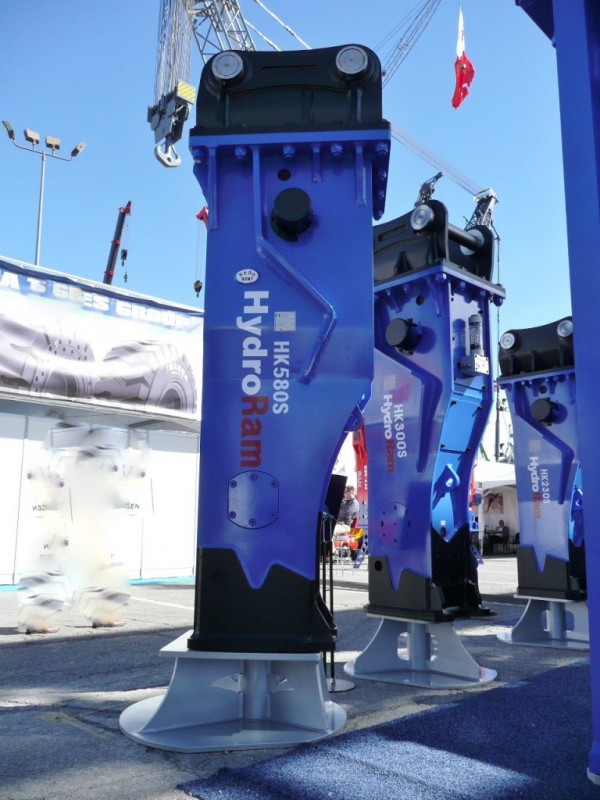

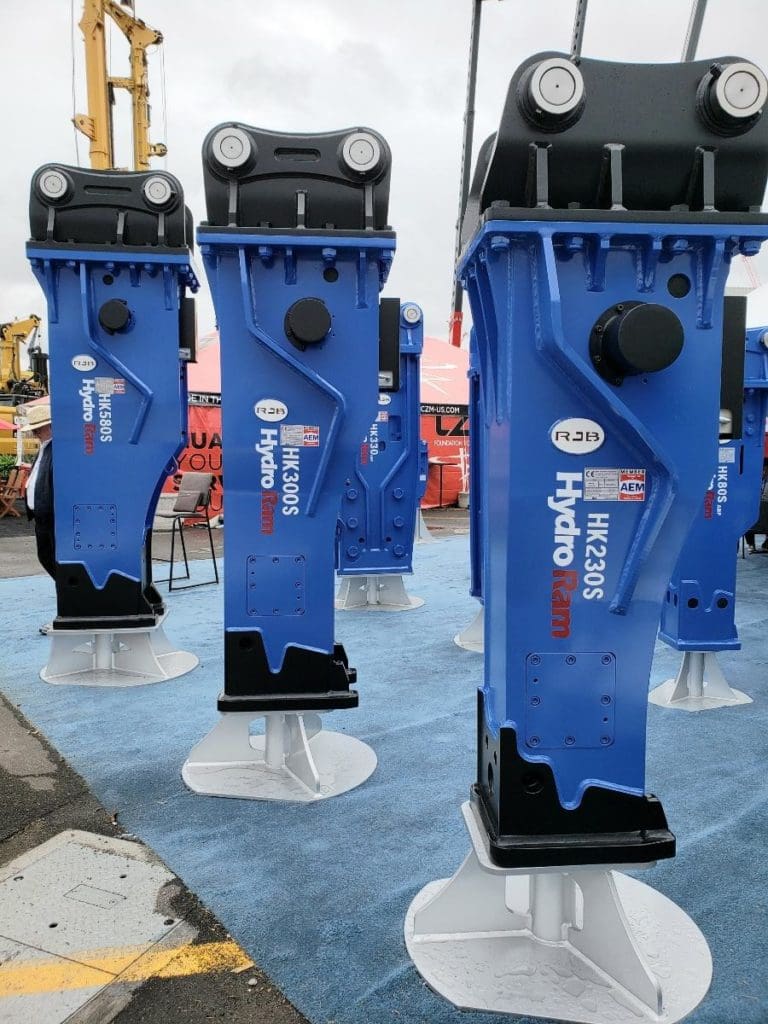

HydroRam Premium Series Hydraulic Hammers

Ready to find out more?

Call Us Toll Free at 1-888-651-0187 or click to the button to Request a Quote today!

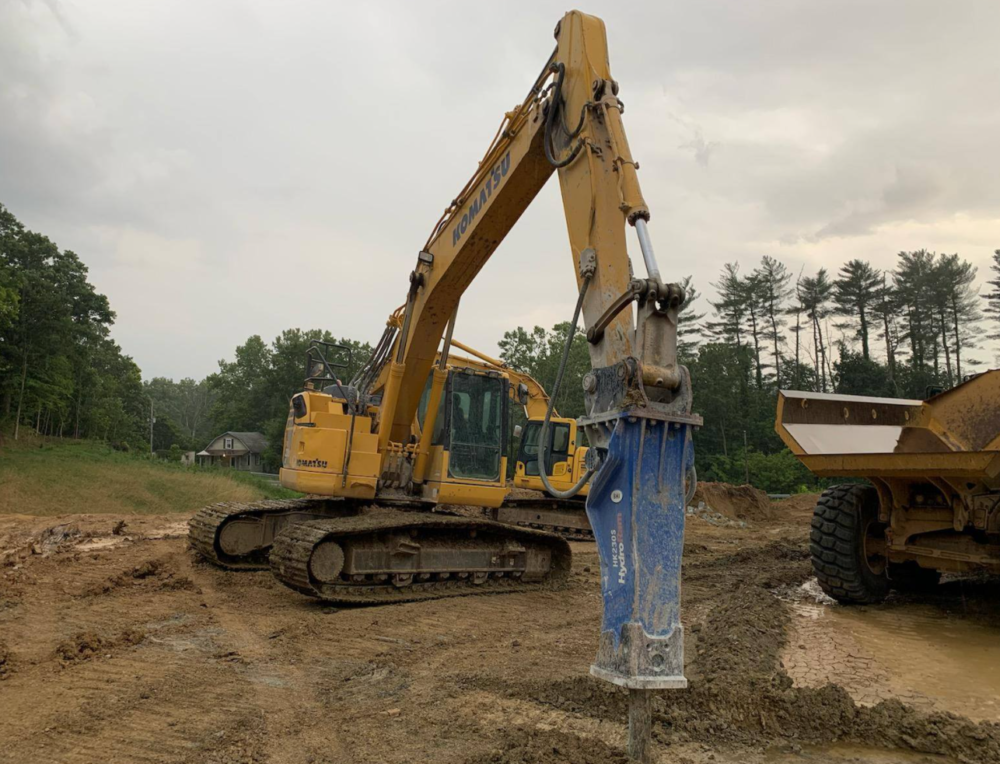

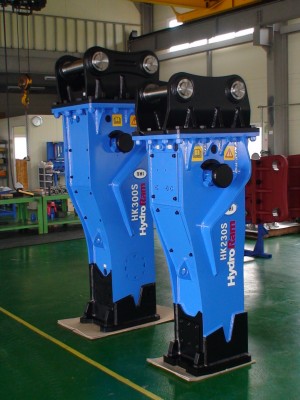

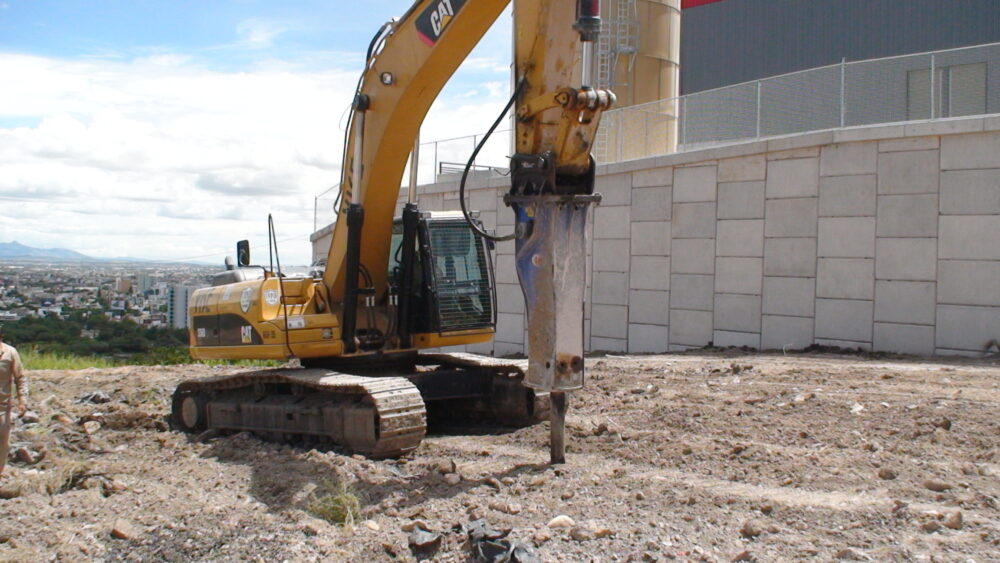

HydroRam HK230S Hydraulic Hammer

HK230S

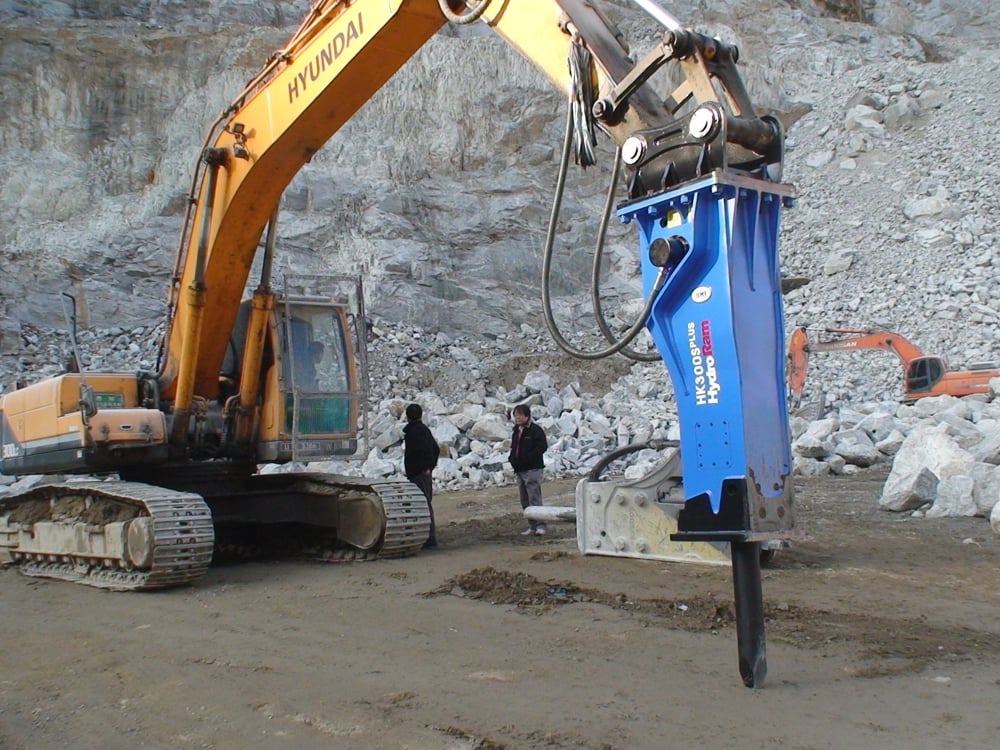

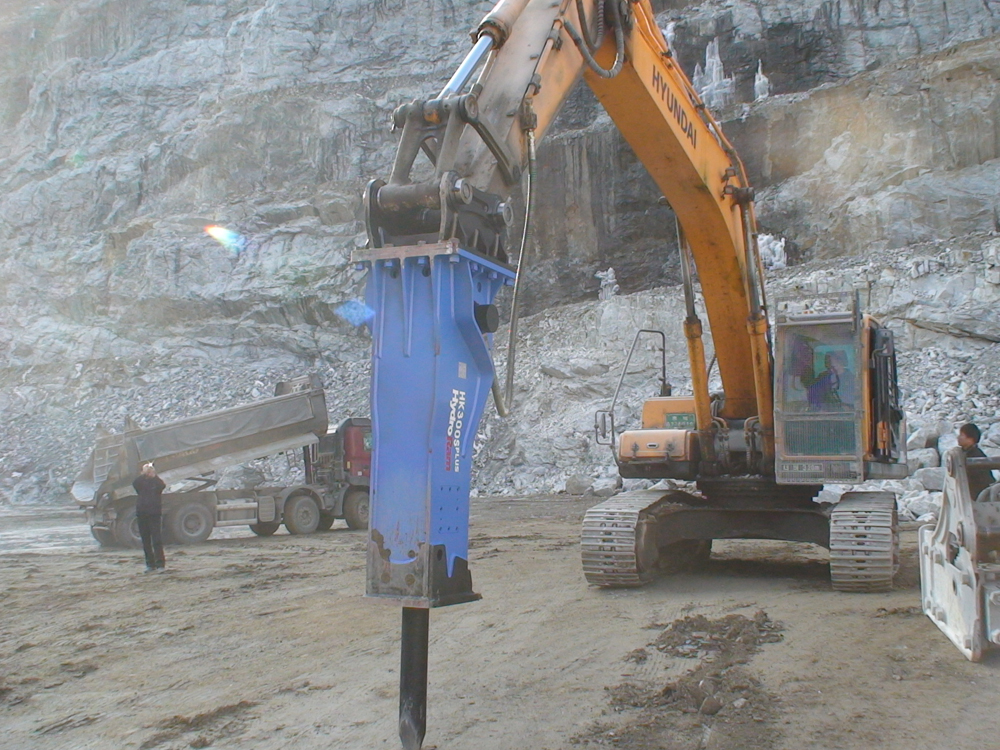

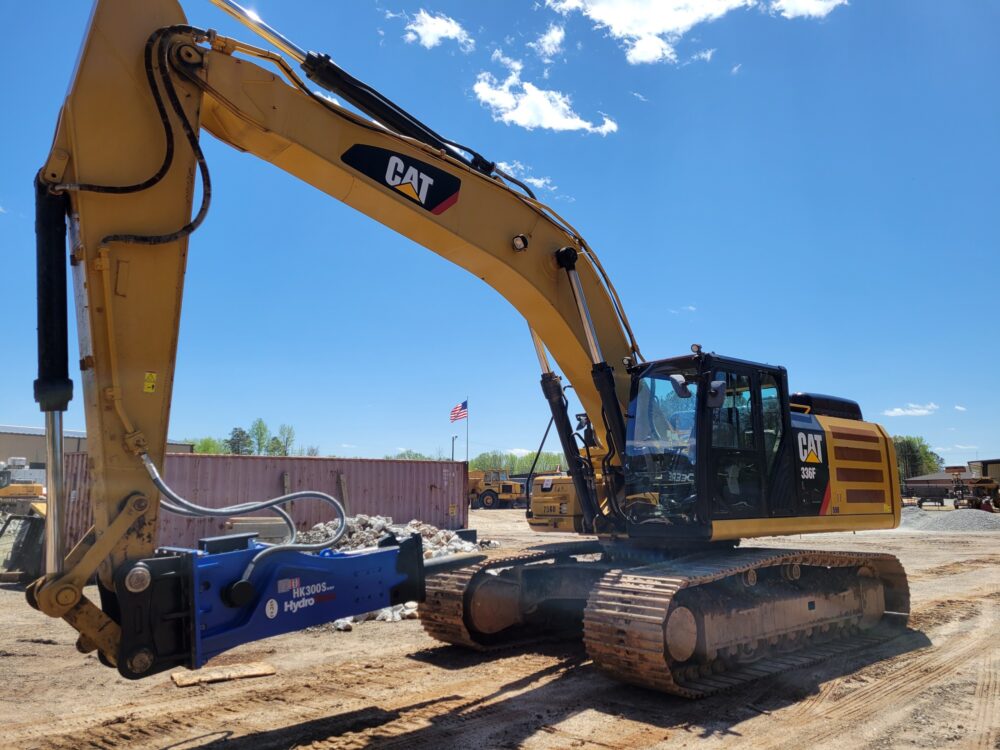

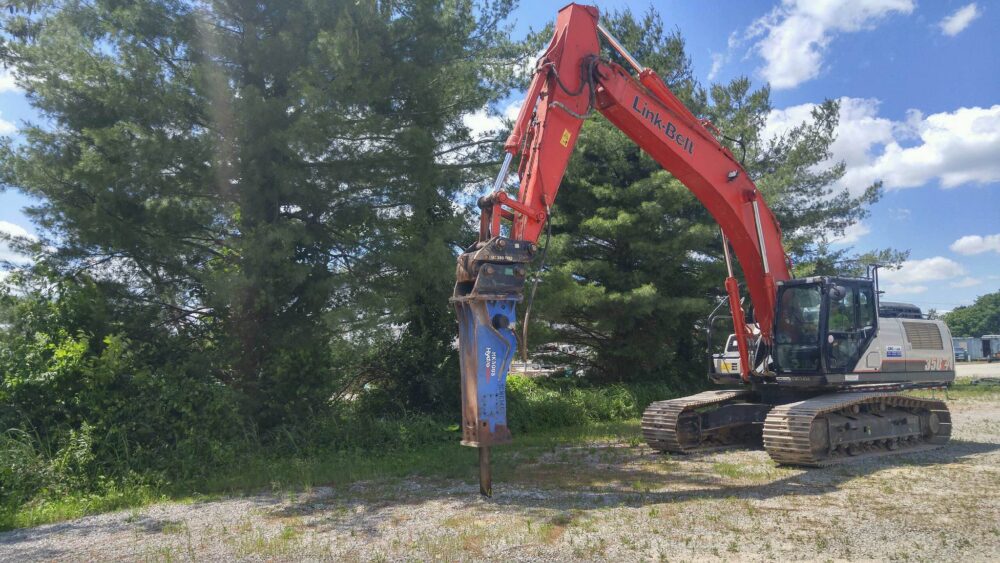

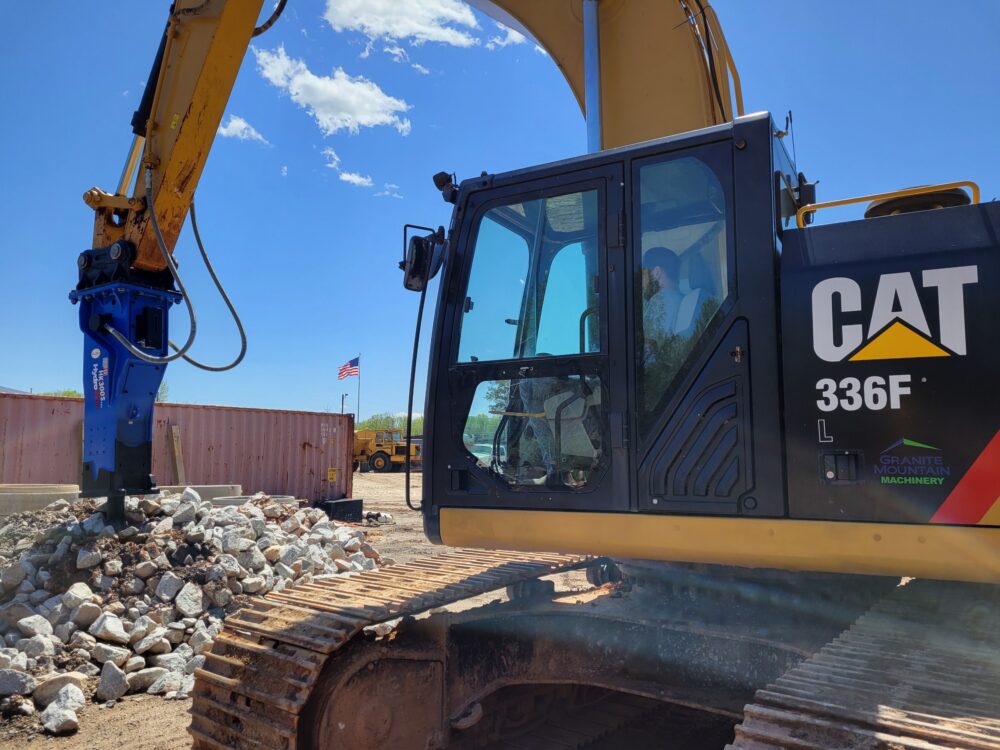

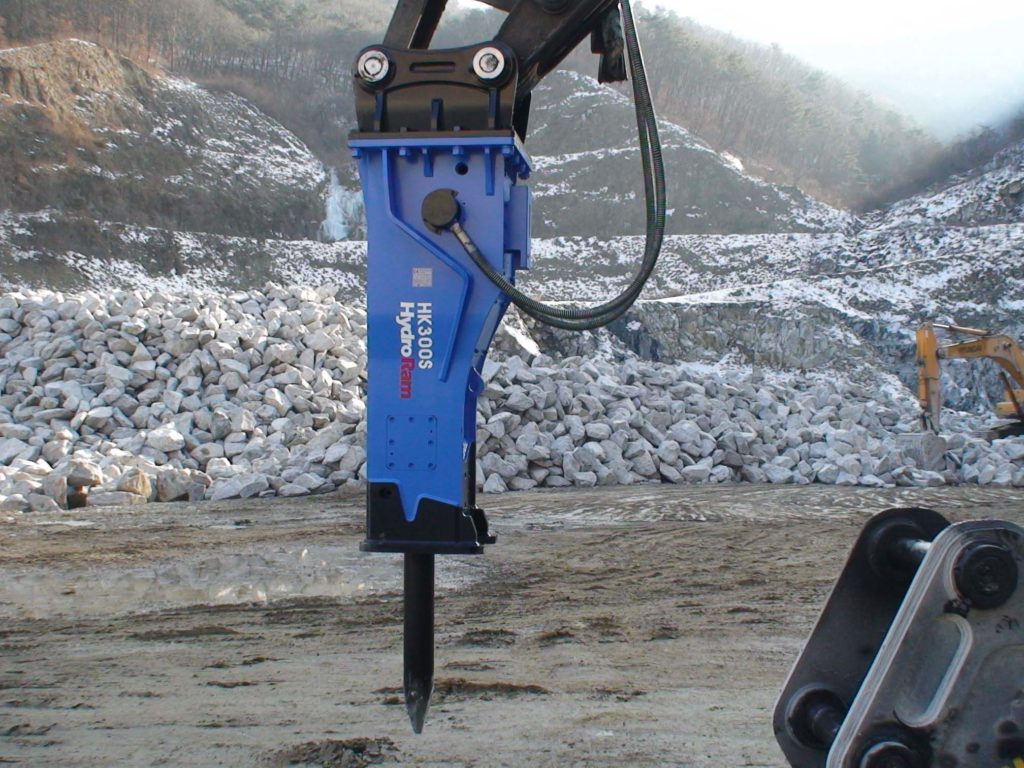

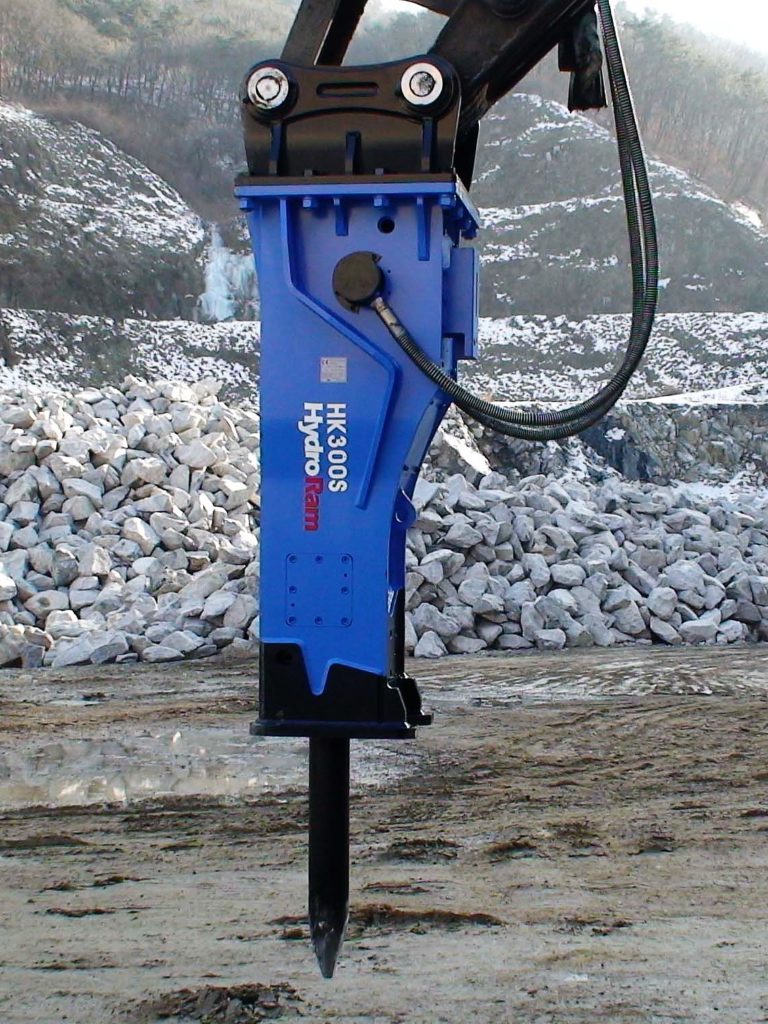

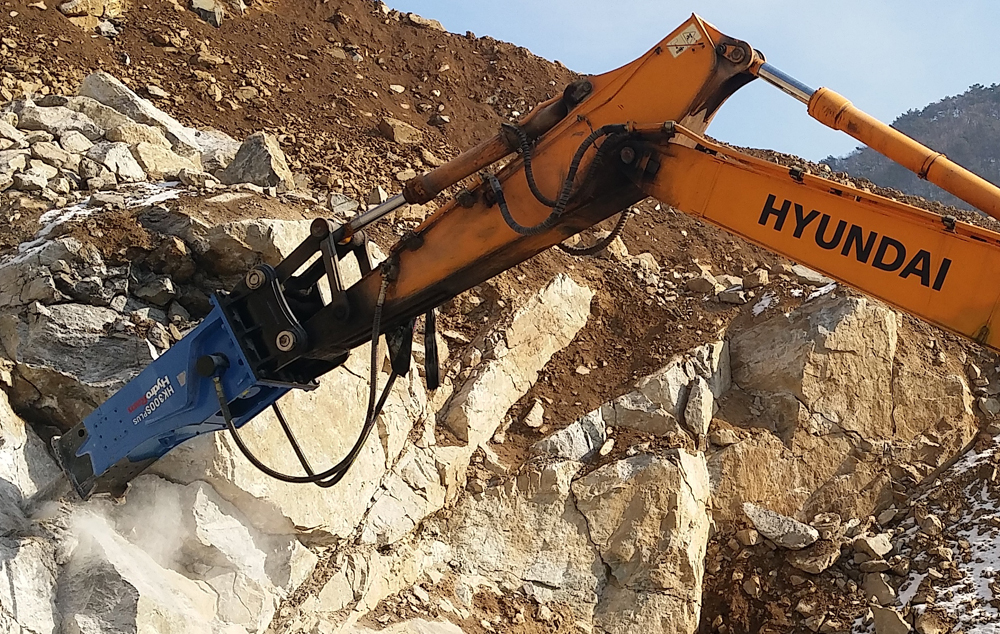

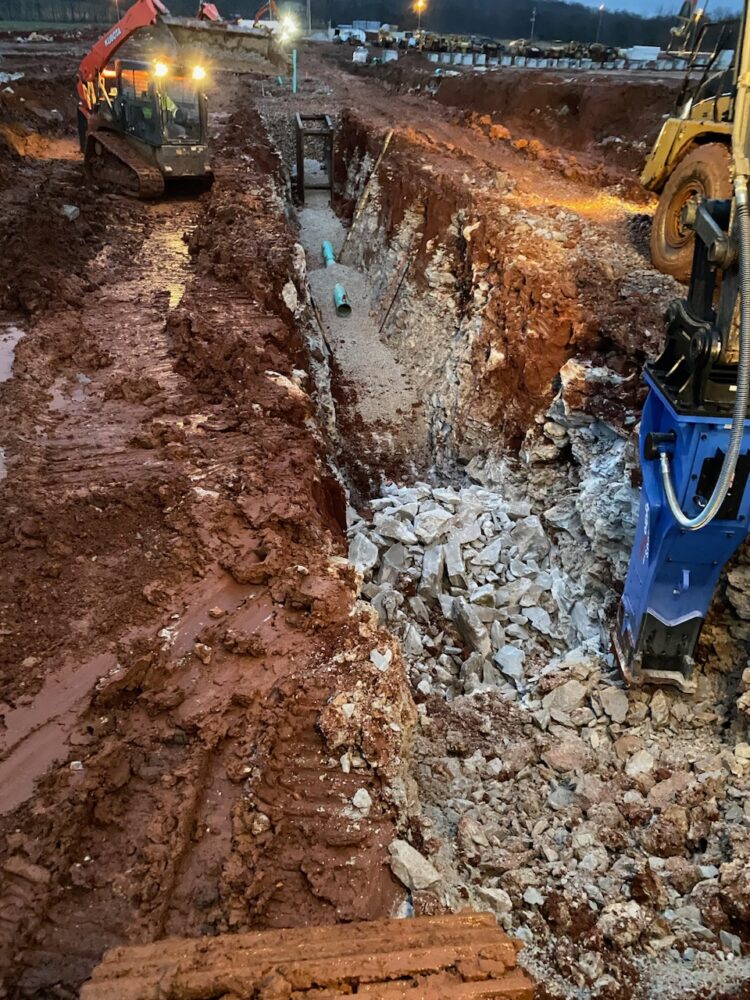

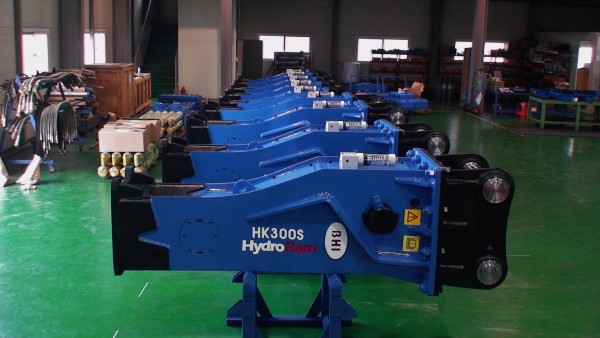

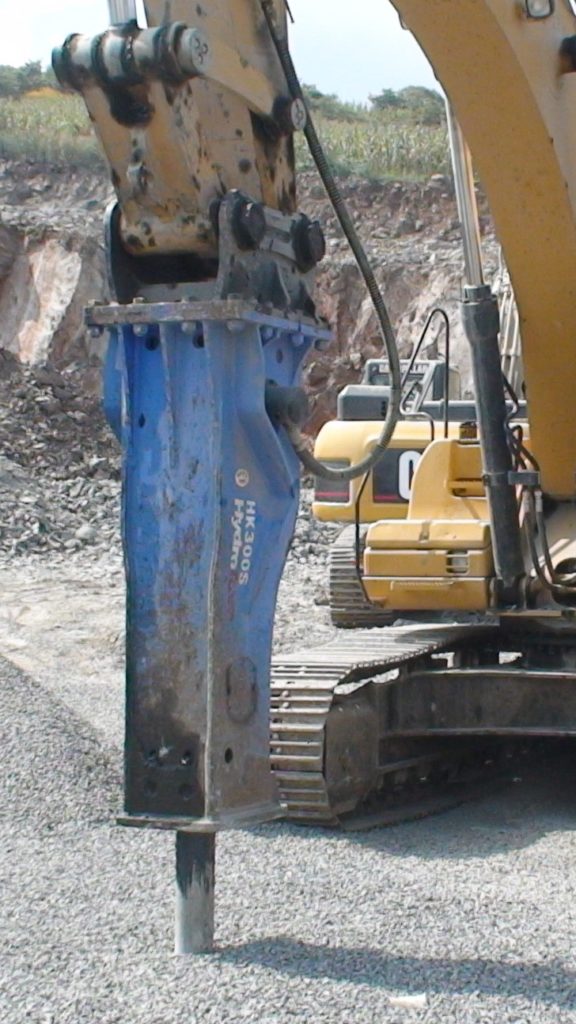

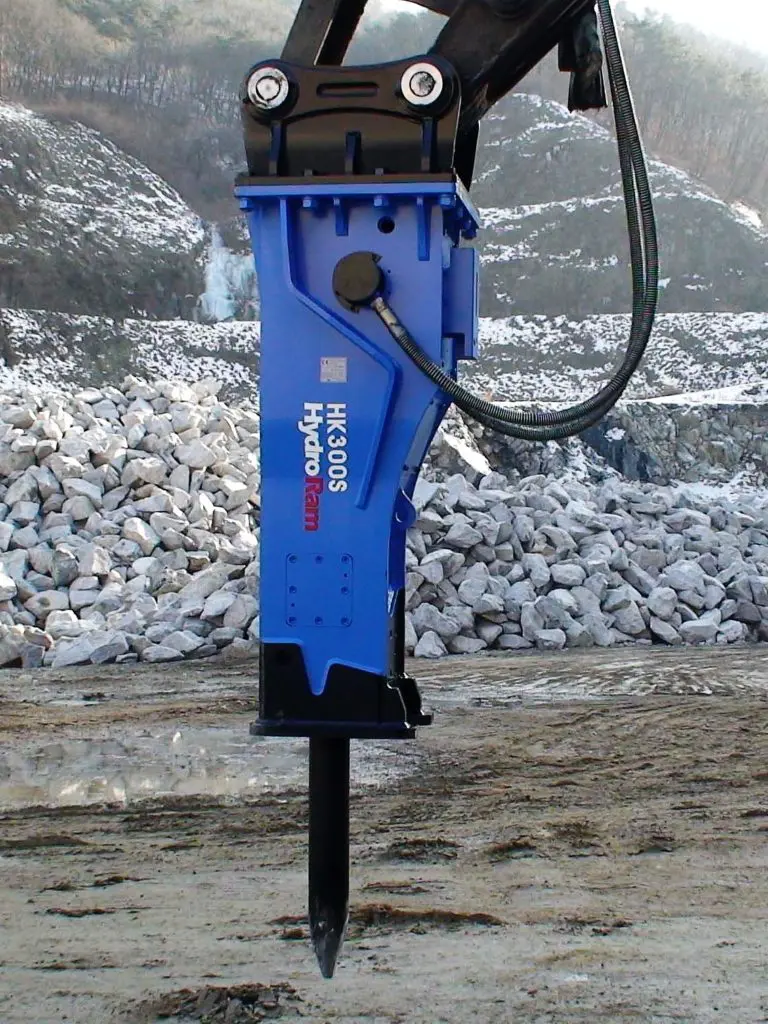

HydroRam HK300S Hydraulic Hammer

HK300S

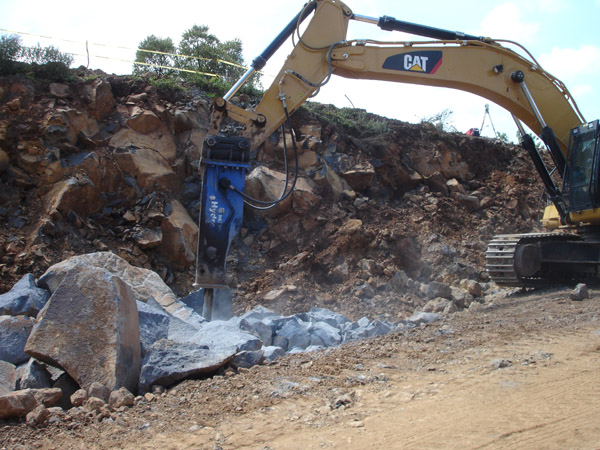

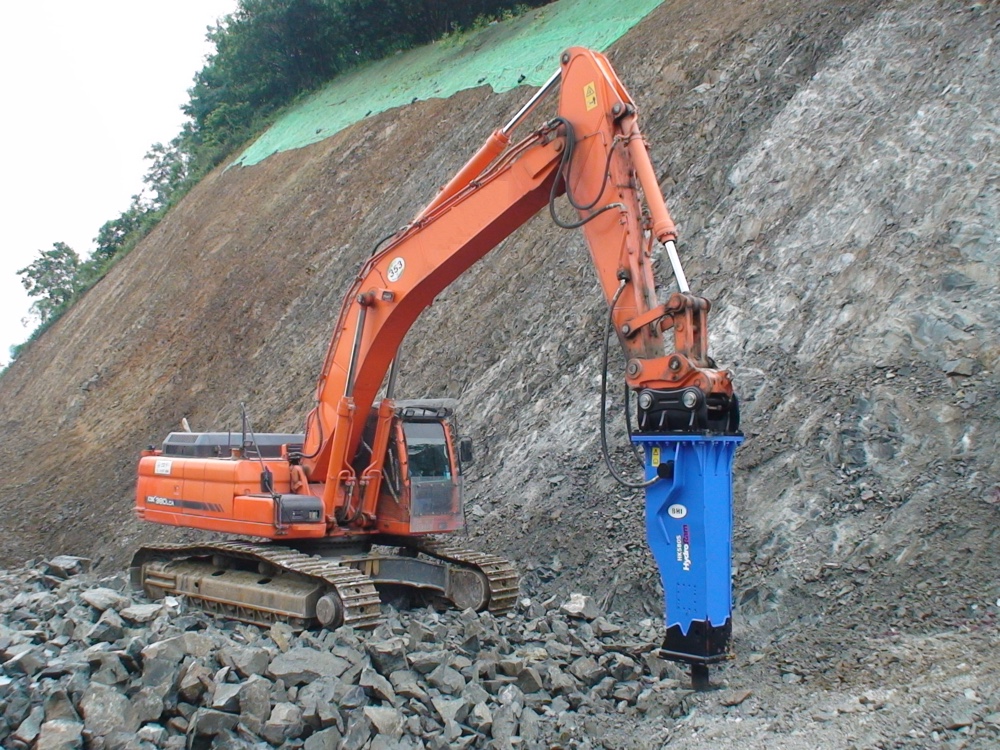

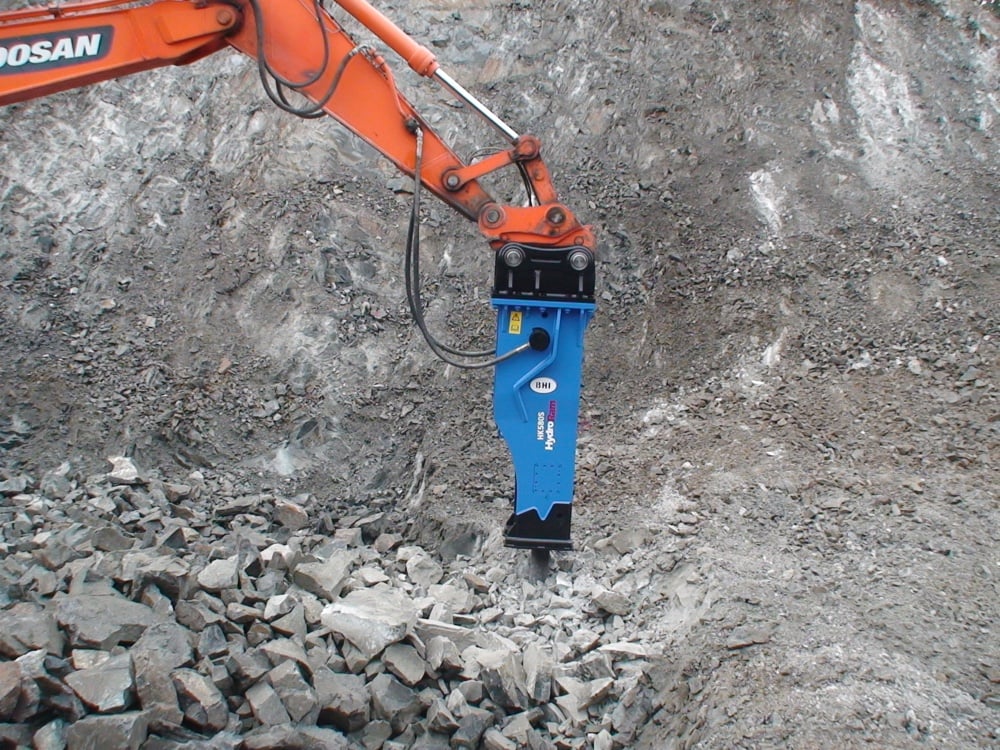

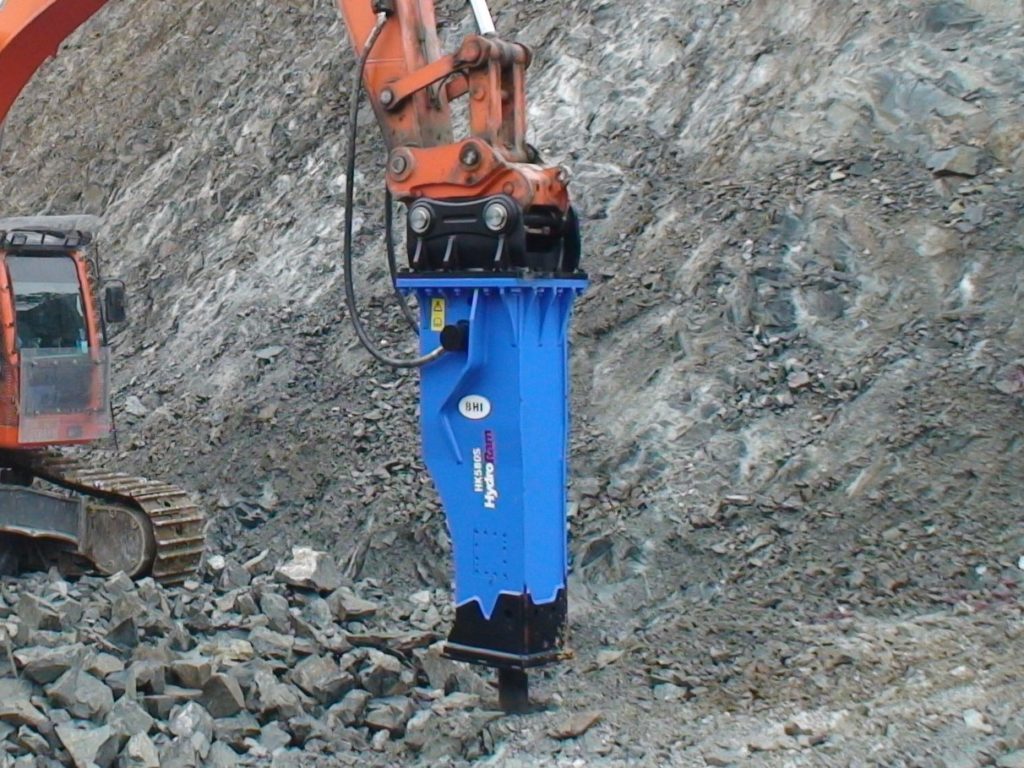

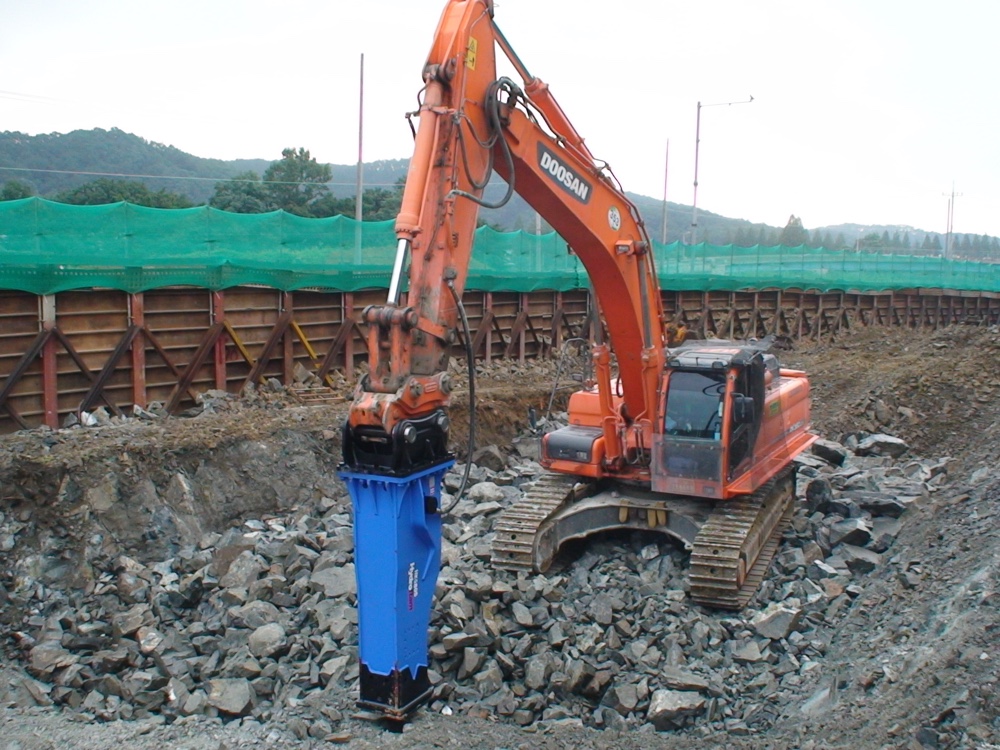

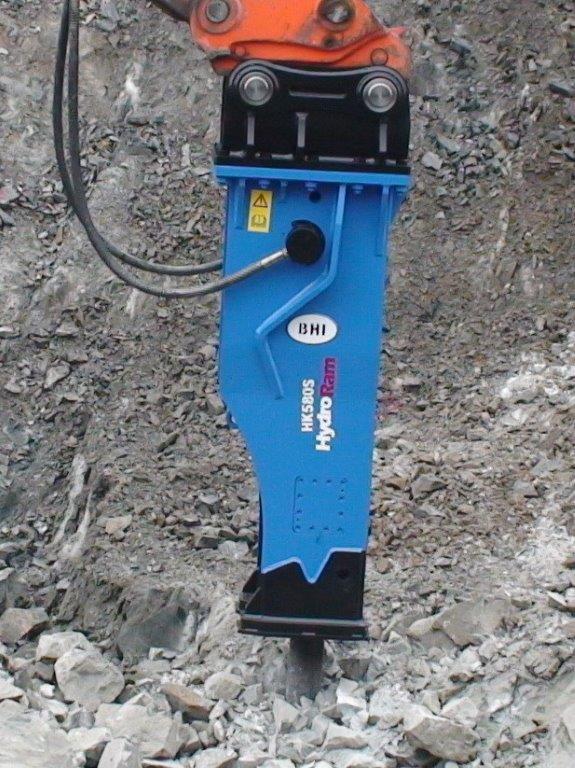

HydroRam HK580S Hydraulic Hammer

HK580S

ModelHK230SHK300SHK580S
Recommended Carrier (US tons)22-30.830.8-38.544-71.5
Impact Energy Class (ft.lbs)60001000014000
Impact Frequency (bpm)370-750L: 200-350 H: 260-420L: 160-250 H: 250-350
Working Weight (lbs/Kg)4290/19506600/30009790/4450
Oil Flow (gpm/lpm)31.7-47.6/120-18031.7-47.6/120-18063.4-84.5/240-320
Operating Pressure (psi/bar)2320-2610/160-1802320-2610/160-1802320-2610/160-180
Tool Diameter (inch/mm)5.43/1386.1/1557.09/180
Overall Length (inch/mm)112.3/2850129.4/3289149.8/3805
Hose Diameter (inch)11.251.25

  1. “Impact Energy Class” does not relate to measured impact energy. It is a marketing rating.
  2. Working weights may vary depending on the bracket configuration.
  3. Specifications are subject to change without notice.
